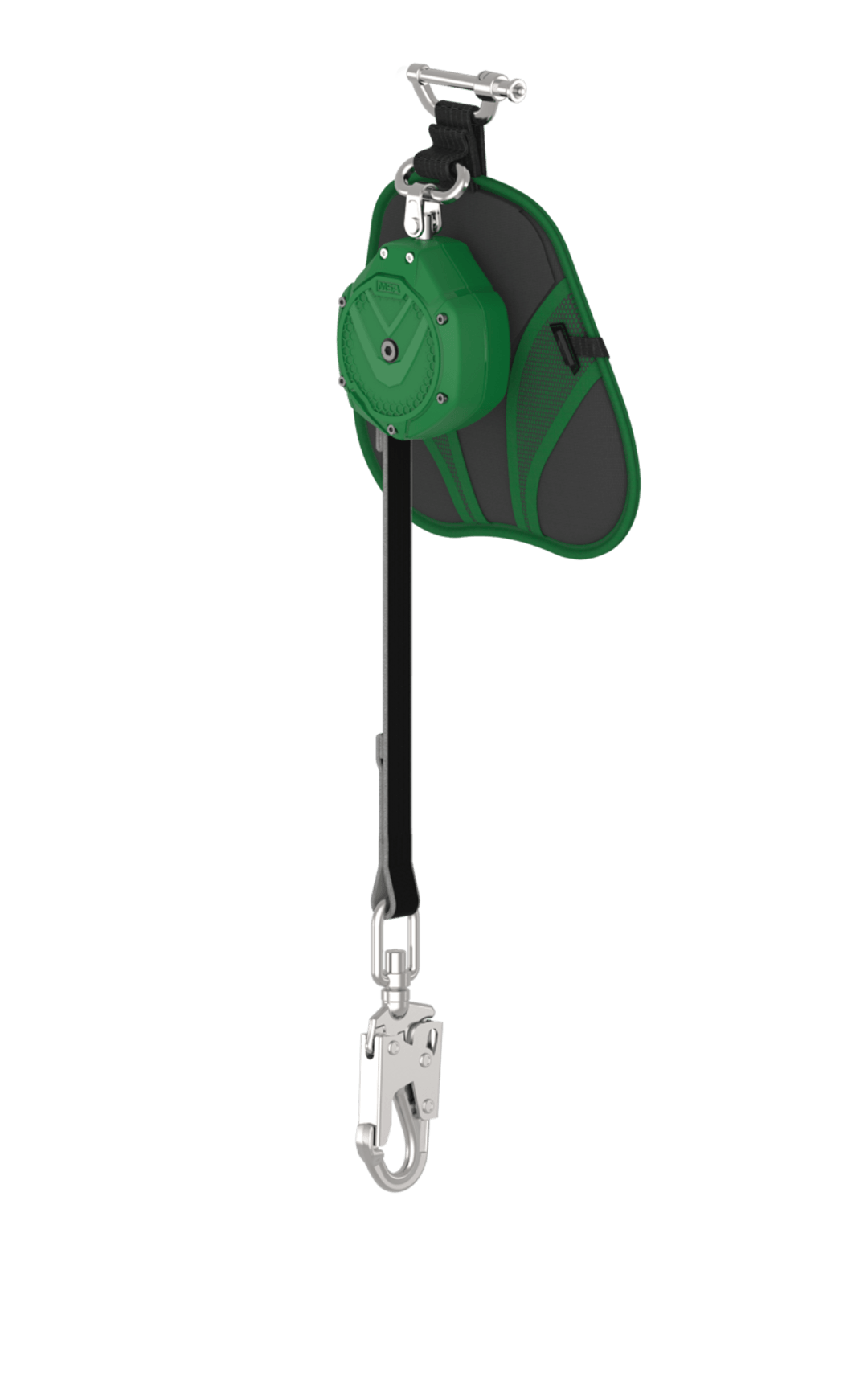

MSA 6 ft. V-Shock Web SRL - Leading Edge with Snaphook

Keeping Workers Safe Where It Matters Most

The MSA 6 ft. V-Shock Web Self-Retracting Lifeline (SRL) Leading Edge with Snaphook offers a perfect solution for fall protection needs in the construction, general industry, and oil & gas sectors. This SRL is ideal for tasks involving roofing, bridge work, elevated surfaces, and scaffolds.

Equipped with advanced V-SHOCK Edge technology, the VSLEW-011-PE-A features a strong 6 ft. lifeline made of HMPE/para-aramid blend material, with a weight capacity of up to 310 lbs. It complies with safety standards ANSI Z359.14-21 and OSHA 29 CFR Part 1910.140 & 1926.502.

Enhanced Safety and Convenience

The VSLEW-011-PE-A is designed to provide exceptional leading-edge protection and boasts a lightweight design. Its simple locking pin attachment makes it easy to connect to a body harness, saving time and effort. The webbing material used in the lifeline also reduces fatigue for workers as it weighs 15% less than similar cable units.

This SRL features low-profile housing that minimizes snag hazards, and stainless steel housing and protective cover that shields the energy absorber from harsh elements. Additionally, the VSLEW-011-PE-A comes in a striking green color and includes a 1-year warranty.

Benefits:

• Suitable for outdoor use due to strong HMPE/para-aramid blend lifeline resists abrasion and UV rays.
• Enhanced comfort during extended use thanks to softer webbing material.
• Easy inspection of the internal energy absorber and external webbing due to clear window on the protective cover.
• Suitable for use in a variety of applications, including elevated surfaces, scaffolding, bridge work, and roofing.
• Reduce time and effort required to set up and improve productivity with easy-to-connect locking pin attachment and lightweight design.


Recommended Industries: Construction, General Industry, Oil & Gas

Applications: Construction, Roofing, Bridge Work, Elevated Surfaces, Scaffolds

Additional Details:

Type: V-SHOCK Edge

Length: 6 ft. (1.8 M)

Snaphook: 36CS, 36CL, AL36CL

Cable Diameter: 1.00" (25.4mm) wide/0.14" (3.6mm) thick

Color: Green

Standards: ANSI Z359.14-21 and OSHA 29 CFR Part 1910.140 & 1926.502

Hardware Material: Aluminum and/or Steel

Lifeline Material: HMPE/para-aramid blend

Material: Glass Filled Nylon

Leading Edge: Yes

Warranty: 1 Year

Weight Capacity: 310 lbs.

Literature:

• Decoding Guide: V-SERIES™ SRL Part Numbers
• Conversion Guide: V-SHOCK Self-Retracting Devices
• Data Sheet: V-SHOCK Self-Retracting Devices

Manuals:

• Manual: V-SHOCK® & V-SHOCK® EDGE Personal Fall Limiter (PFL)

FAQs

What are standard requirements for using the VSLEW-011-PE-A?

The V-SHOCK EDGE 6 ft (1.8 m) PFL must be attached to a certified anchor point within the platform of the lift. The user weight capacity, including clothing and tools, is 310 lbs. (141 kg). The user must ensure a minimum clearance below the platform of 8.5 ft (2.6 m). Clearance is calculated for a rigid anchor, if a non-rigid anchor is being used then a qualified person should evaluate for additional clearance considerations.

What is V-SHOCK Edge technology?

The V-SHOCK Edge technology in the VSLEW-011-PE-A helps minimize the risk of tripping and reduces the forces on the body in the event of a fall.

What is the V-Shock Edge Single PFL Fall Clearance?

Fall clearance for the VSLEW-011-PE-A 6 ft V-SHOCK EGDE Tieback PFL: 6 ft / 1.8 m Lifeline + 2 ft / 0.6 m (Total Length: 8 ft / 2.4 m).

Does the VSLEW-011-PE-A meet industry standards and approvals?

The MSA VSLEW-011-PE-A is compliant with ANSI Z359.14-21 and OSHA 29 CFR Part 1910.140 & 1926.502.
