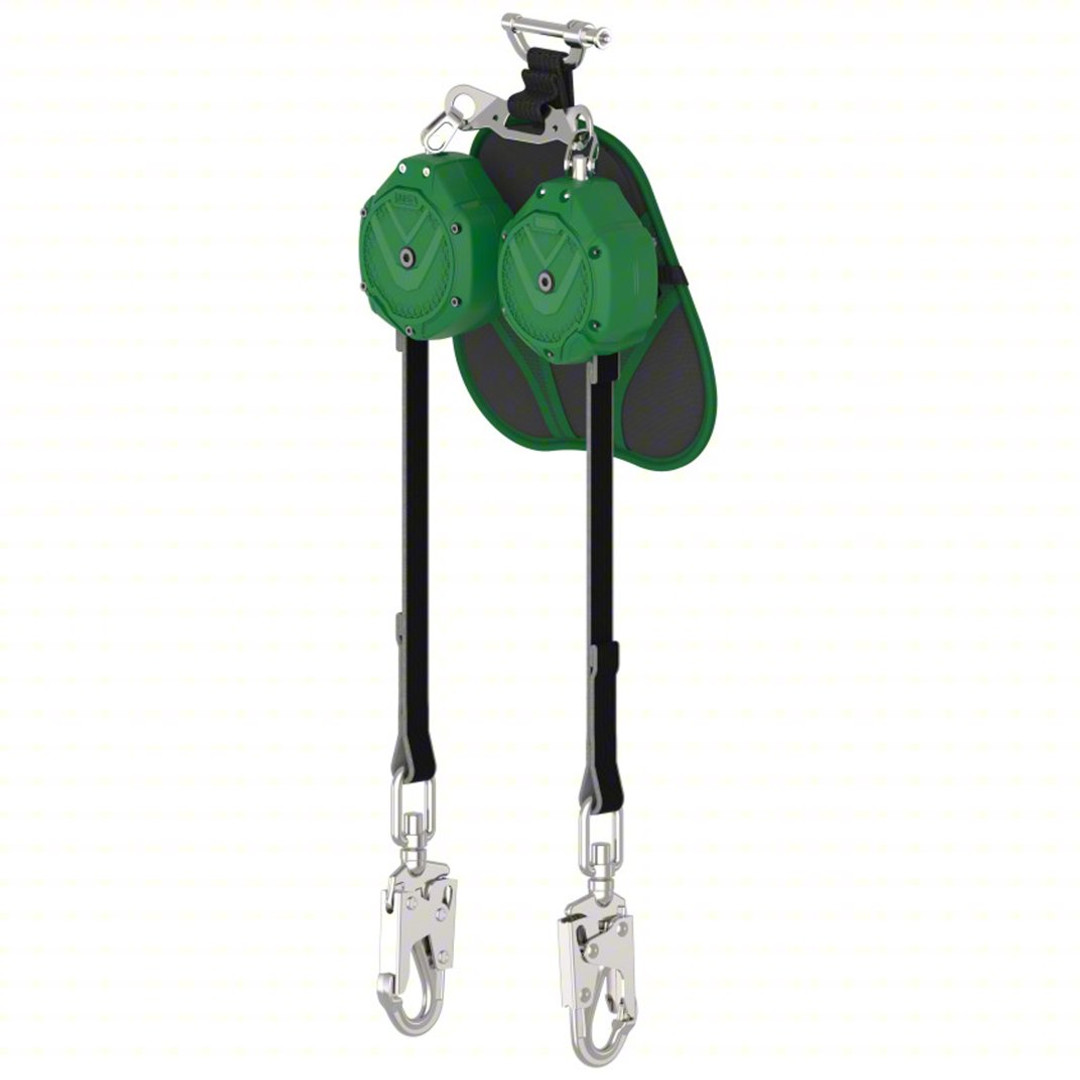

MSA 6 ft. Twin V-Shock Web SRL - Leading Edge with Snaphook

Perfect Solution for Your Fall Protection Needs

The MSA 6 ft. Twin V-Shock Web Self-Retracting Lifeline (SRL) Leading Edge with Snaphook is designed to meet the fall protection needs of workers in the construction or general industry, and oil & gas sectors. The PFL twin-leg configuration gives users 100% tie-off when moving around the work site.

The VSLEW-012-PE-A is perfect for applications involving roofing, bridge work, elevated surfaces, and scaffolds.

Featuring cutting-edge V-SHOCK Edge technology, the VSLEW-012-PE-A by MSA is available in a sturdy 6-foot length of HMPE/para-aramid blend lifeline material. With a generous 310 lb. weight capacity, this SRL meets ANSI Z359.14-21 and OSHA 29 CFR Part 1910.140 & 1926.502 safety standards.

Excellent Leading-Edge Protection and Lightweight Design

One of the standout features of the VSLEW-012-PE-A is its easy-to-connect locking pin attachment, which helps to save time and frustration when connecting to a body harness. Additionally, the lifeline is made of webbing material, which weighs 15% less than similar cable units and reduces fatigue for workers.

The VSLEW-012-PE-A also boasts a sleek, low-profile housing that reduces snag hazards and a stainless steel housing and protective cover that protects the energy absorber against harsh elements. The Twin V-Shock Web SRL by MSA comes with a 1-year warranty and is available in a striking green color.

Benefits:

• Reliable fall protection for applications involving elevated surfaces.
• Easy-to-connect locking pin saves time and frustration.
• Lightweight webbing reduces worker fatigue.
• Low-profile design minimizes snag hazards.
• Durable stainless steel housing protects against harsh elements.
• Meets or exceeds ANSI and OSHA standards

Recommended Industries: Construction, General Industry, Oil & Gas

Applications: Construction, Roofing, Bridge Work, Elevated Surfaces, Scaffolds

Additional Details:

Type: V-SHOCK Edge

Length: 6 ft. (1.8 M)

Snaphook: 36CS, 36CL, AL36CL

Cable Diameter: 1.00" (25.4mm) wide/0.14" (3.6mm) thick

Color: Green

Standards: ANSI Z359.14-21 and OSHA 29 CFR Part 1910.140 & 1926.502

Hardware Material: Aluminum and/or Steel

Lifeline Material: HMPE/para-aramid blend

Material: Glass Filled Nylon

Leading Edge: Yes

Warranty: 1 Year

Weight Capacity: 310 lbs.

Literature:

• Decoding Guide: V-SERIES™ SRL Part Numbers

• Conversion Guide: V-SHOCK Self-Retracting Devices
• Data Sheet: V-SHOCK Self-Retracting Devices

Manuals:

• Manual: V-SHOCK® & V-SHOCK® EDGE Personal Fall Limiter (PFL)

FAQs

What are standard requirements for using the VSLEW-012-PE-A?

The V-SHOCK EDGE 6 ft (1.8 m) PFL must be attached to a certified anchor point within the platform of the lift. The user weight capacity, including clothing and tools, is 310 lbs. (141 kg). The user must ensure a minimum clearance below the platform of 8.5 ft (2.6 m). Clearance is calculated for a rigid anchor. If a non-rigid anchor is being used, then a qualified person should evaluate for additional clearance considerations.

What is V-SHOCK Edge technology?

The V-SHOCK Edge technology in the VSLEW-012-PE-A helps minimize the risk of tripping, and reduces the forces on the body in the event of a fall.

What is the V-Shock Edge Twin PFL Fall Clearance?

Fall clearance for the VSLEW-011-PE-A 6 ft V-SHOCK EGDE Tieback PFL: 6 ft / 1.8 m Lifeline + 2 ft / 0.6 m (Total Length: 8 ft / 2.4 m).

Does the VSLEW-012-PE-A meet industry standards and approvals?

The MSA VSLEW-012-PE-A is compliant with ANSI Z359.14-21 and OSHA 29 CFR Part 1910.140 & 1926.502.
