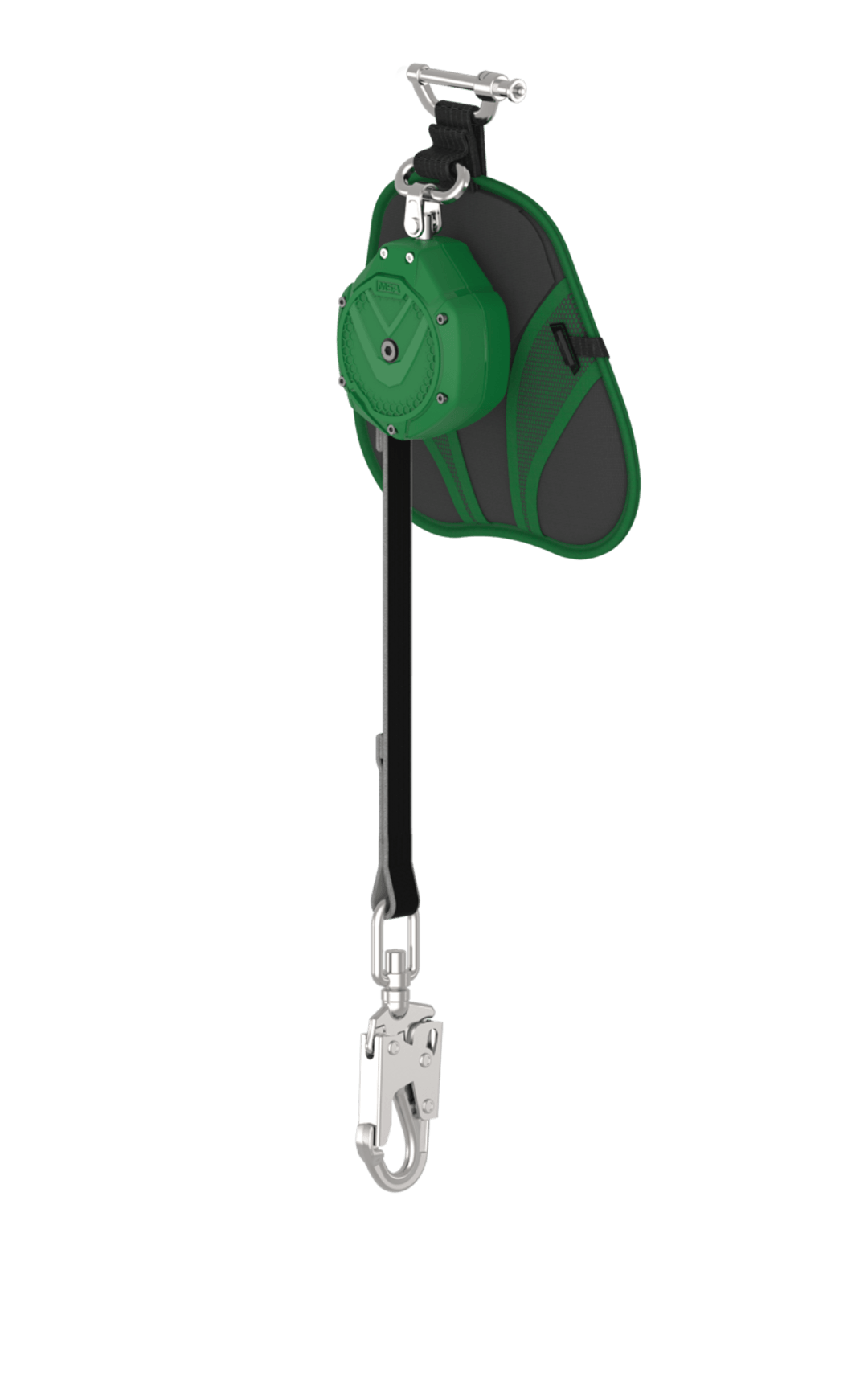

MSA 6 ft. V-Shock Web SRL - Leading Edge with Snaphook

Product Description

Keeping Workers Safe Where It Matters Most

The MSA 6 ft. V-Shock Web Self-Retracting Lifeline (SRL) Leading Edge with Snaphook offers a perfect solution for fall protection needs in the construction, general industry, and oil & gas sectors. This SRL is ideal for tasks involving roofing, bridge work, elevated surfaces, and scaffolds.

Equipped with advanced V-SHOCK Edge technology, the VSLEW-011-PE-A features a strong 6 ft. lifeline made of HMPE/para-aramid blend material, with a weight capacity of up to 310 lbs. It complies with safety standards ANSI Z359.14-21 and OSHA 29 CFR Part 1910.140 & 1926.502.

Enhanced Safety and Convenience

The VSLEW-011-PE-A is designed to provide exceptional leading-edge protection and boasts a lightweight design. Its simple locking pin attachment makes it easy to connect to a body harness, saving time and effort. The webbing material used in the lifeline also reduces fatigue for workers as it weighs 15% less than similar cable units.

This SRL features low-profile housing that minimizes snag hazards, and stainless steel housing and protective cover that shields the energy absorber from harsh elements. Additionally, the VSLEW-011-PE-A comes in a striking green color and includes a 1-year warranty.

Benefits:

Suitable for outdoor use due to strong HMPE/para-aramid blend lifeline resists abrasion and UV rays.
Enhanced comfort during extended use thanks to softer webbing material.
Easy inspection of the internal energy absorber and external webbing due to clear window on the protective cover.
Suitable for use in a variety of applications, including elevated surfaces, scaffolding, bridge work, and roofing.
Reduce time and effort required to set up and improve productivity with easy-to-connect locking pin attachment and lightweight design.

Recommended Industries: Construction, General Industry, Oil & Gas

Applications: Construction, Roofing, Bridge Work, Elevated Surfaces, Scaffolds

Additional Details:

Type: V-SHOCK Edge

Length: 6 ft. (1.8 M)

Snaphook: 36CS, 36CL, AL36CL

Cable Diameter: 1.00" (25.4mm) wide/0.14" (3.6mm) thick

Color: Green

Standards: ANSI Z359.14-21 and OSHA 29 CFR Part 1910.140 & 1926.502

Hardware Material: Aluminum and/or Steel

Lifeline Material: HMPE/para-aramid blend

Material: Glass Filled Nylon

Leading Edge: Yes

Warranty: 1 Year

Weight Capacity: 310 lbs.

Literature:

Manuals:

Manual: V-SHOCK® & V-SHOCK® EDGE Personal Fall Limiter (PFL)

FAQs

What are standard requirements for using the VSLEW-011-PE-A?

The V-SHOCK EDGE 6 ft (1.8 m) PFL must be attached to a certified anchor point within the platform of the lift. The user weight capacity, including clothing and tools, is 310 lbs. (141 kg). The user must ensure a minimum clearance below the platform of 8.5 ft (2.6 m). Clearance is calculated for a rigid anchor, if a non-rigid anchor is being used then a qualified person should evaluate for additional clearance considerations.

What is V-SHOCK Edge technology?

The V-SHOCK Edge technology in the VSLEW-011-PE-A helps minimize the risk of tripping and reduces the forces on the body in the event of a fall.

What is the V-Shock Edge Single PFL Fall Clearance?

Fall clearance for the VSLEW-011-PE-A 6 ft V-SHOCK EGDE Tieback PFL: 6 ft / 1.8 m Lifeline + 2 ft / 0.6 m (Total Length: 8 ft / 2.4 m).

Does the VSLEW-011-PE-A meet industry standards and approvals?

The MSA VSLEW-011-PE-A is compliant with ANSI Z359.14-21 and OSHA 29 CFR Part 1910.140 & 1926.502.
