Arnold Quick-Tach Skid Steer Mounted Hopper Gate Door Opener: 1EA

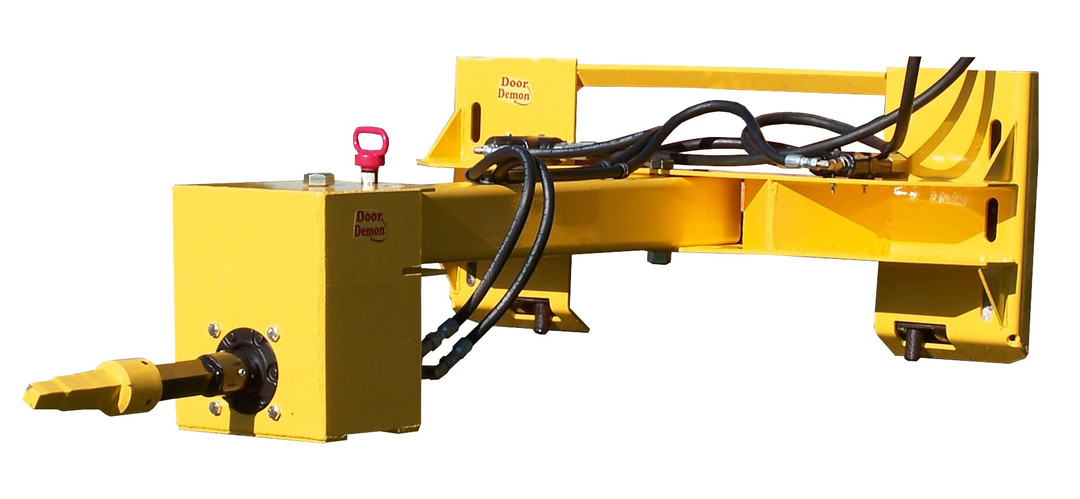

The “Quick-Tach” Skid-Steer Mounted Hopper Gate Opener utilizes a universal mount quick attach plate allowing it to easily mount to most skid-steers or similar loading devices. This unit’s hydraulic motor is powered by the hydraulic system of the skid-steer or similar device via the auxiliary hydraulic ports. This makes the “Quick-Tach” a great solution where power options such as air and electric are not available.

The unit has two pivot points, each locked in place with a 1” pin. The boom itself swings both left and right, plus the head also turns left and right. This allows the “Quick-Tach” drive shaft to be positioned as needed to access the railcar capstan.

The “Quick-Tach” Skid-Steer mounted hopper gate opener utilizes a universal mount quick attach plate to easily mount to most skid-steers or similar material handling devices. The unit features smooth, continuous torque for an easier and safer operating experience. Built-in hydraulic flow control works to increase on-site unloading speed.

Prevent injuries and increase efficiency with the “Quick-Tach” skid-steer mounted hopper gate opener and other Door Demon® equipment.

• Prevents operator injury
• Increases unloading speed
• Single-person operation from seat
• Smooth, continuous torque
• Low maintenance cost

Features:
• Utilizes skid steer’s hydraulics – no other power source needed
• Built in hydraulic flow control
• Several shaft positions
• Quick attach universal mounting plate
• Unit operates from the controls and hydraulic power of your skid steer unit
• Flow controls and hose are included for connection to your machine
• Functions controlled from operator area of your machine
• Unit has multiple positions: straight on to 90 degrees left or right
• 26” shaft with Door Demon bit provided (custom lengths available)
• Flow requirements: 3 gallon per minute minimum @ 3000 PSI
• We do not supply hydraulic couplings for connection to your machine.

Requirements we need to know when ordering:
• Type of skid steer unit (so we use the proper attachment plate)
• Length of hose needed from plate to your connection
