Arnold Multi-Position Beam Mount Hopper Gate Door Opener: 1EA

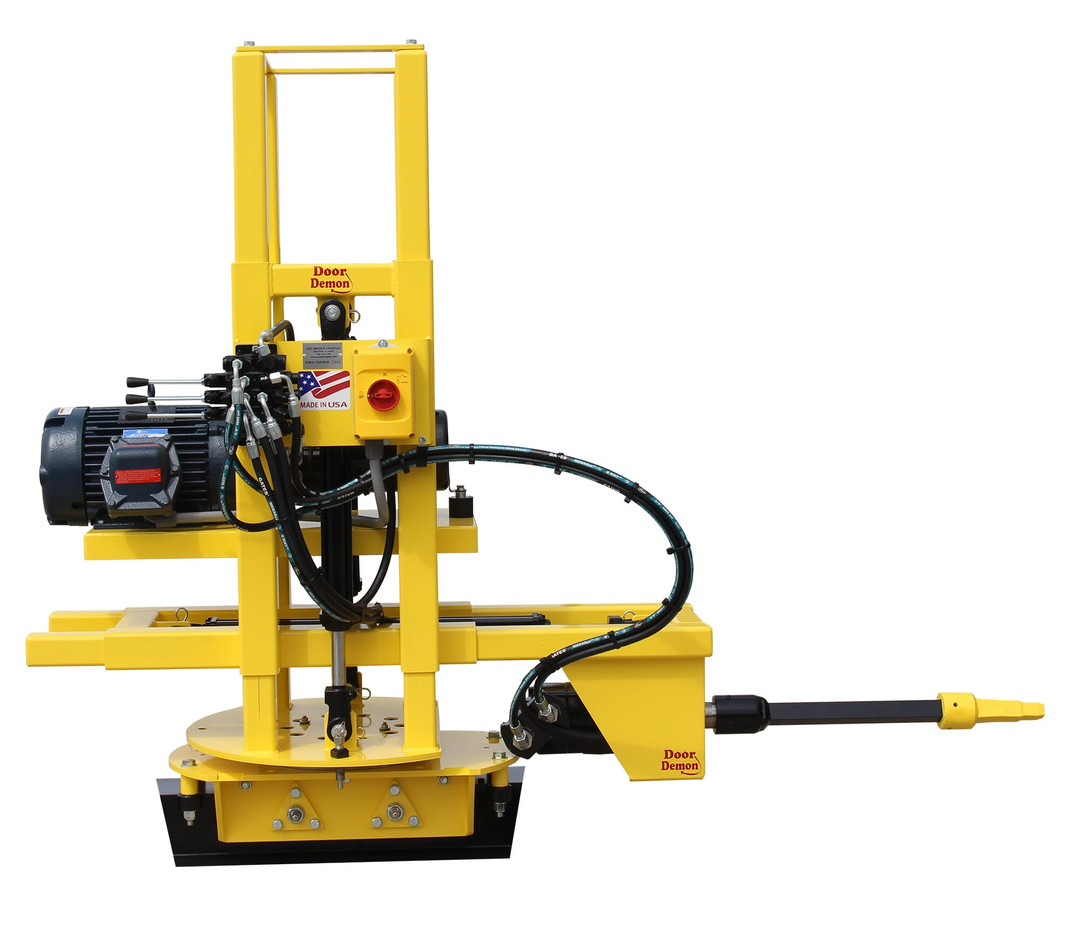

The Multi Position Beam Mounted Hopper Gate Opener is the optimal tool for opening the toughest hopper gates in a busy railyard. The unit features an electric over hydraulic system with powered height adjustment as well as forward and retract motion. This enables simple lever operated adjustment to fit the wide range of railcar capstan heights and depths. The free-moving trolley system rolls easily by hand and allows for moving trains and capstans. This beam mounted unit only requires single person operation, and it works to prevent operator injury.

Improve safety and increase productivity with our flagship unit: the Multi Position Beam Mounted hopper gate opener.

The unit is easily modified to fit into most unloading areas with customized shaft lengths. In addition, a rotation option is available to completely remove the drive shaft from the walkway. This is especially helpful in tight layouts, as this option also prevents the driveshaft from making contact with the railcar.

• Prevents operator injury
• Beam mounted, enables maximum unloading speed
• Hydraulically powered vertical and forward/retract motion
• Single person operation – lever operated
• Smooth, continuous torque
• Low maintenance cost
• Low maximum noise: 85 dBA

Features:
• 5 Horsepower TEFC explosion proof motor – 3/60/208-230/460 volt
• 26” shaft with Door Demon bit provided (custom lengths available)
• Return to center control valves
• 18” powered up and down (vertical lift adjustment for varying capstan heights)
• 24” powered in and out (insertion of extension bar/bit into capstan)
• W6x25 beam required (not supplied)
