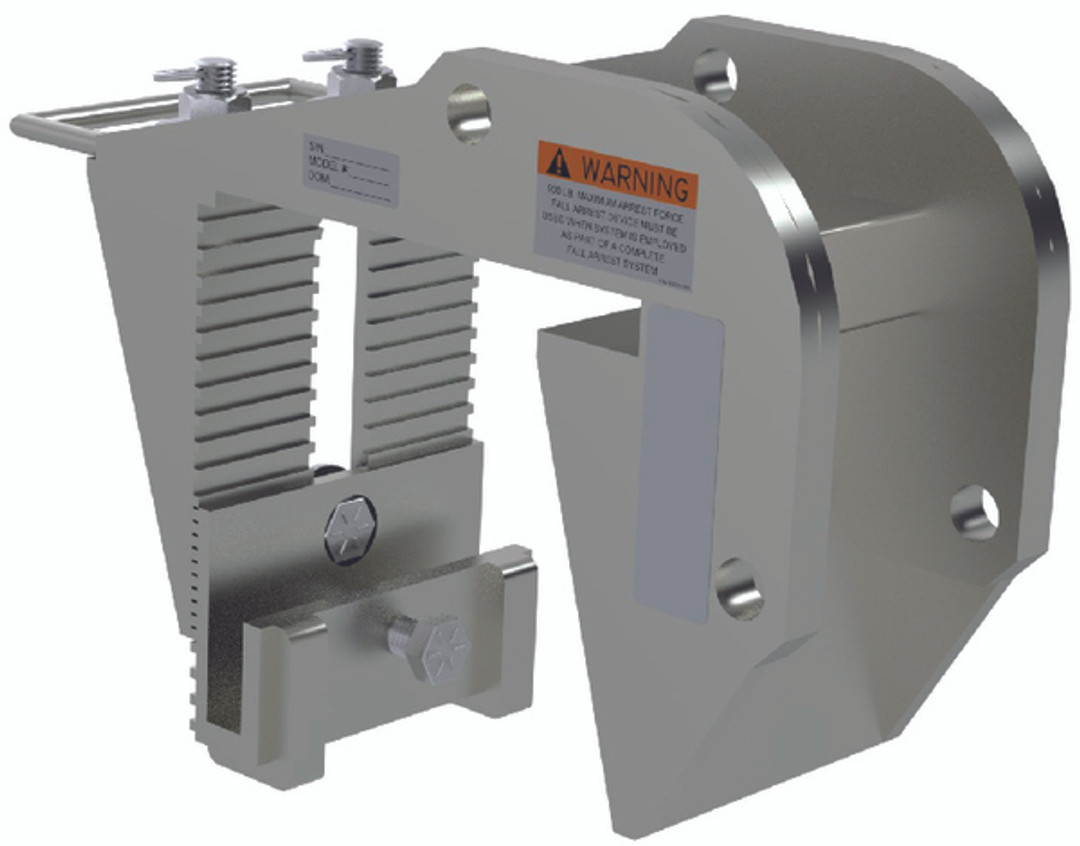

Pelsue BC-08A Adjustable Beam Clamp Base - Each

The Pelsue Adjustable Angle Clamp is constructed from carbon steel and has steel hardware. The Adjustable Angle Clamp is specifically designed to provide a portable mounting base for a fall arrest tower on structural angle sections. The clamp can be installed in two different configurations depending on the orientation of the angle beam. The #BC-08A is designed to fit on a number of different size angles that can range from 3.5 to 8 in and a flange thickness ranging from 3/16 to 3/4 in. All specifications provided are based upon and only valid for usage with Pelsue Fall Arrest Tower Model #FT-C70. The T.A. Pelsue Company can not verify equipment safety and/or compliance when utilized with any other system.

• As a portable Fall Arrest Tower mounting base
• Man Rated Load Capacity Using Fall Arrest Tower....... Rating is determined by fall arrest tower
• Warning! A 900 lb maximum arrest force (MAF) fall arrest device must be used when system is employed as part of a complete fall arrest system
• Maximum weight of person upon anchorage is 350 lb inclusive of all tools and equipment
• For portable usage on angular structural sections
• Can be installed in two configurations (normal & inverted) depending on beam orientation
• Provides a mounting base for a Pelsue Fall Arrest Tower Model #FT-C70
• Two adjustment bolts allow for various flange thicknesses
