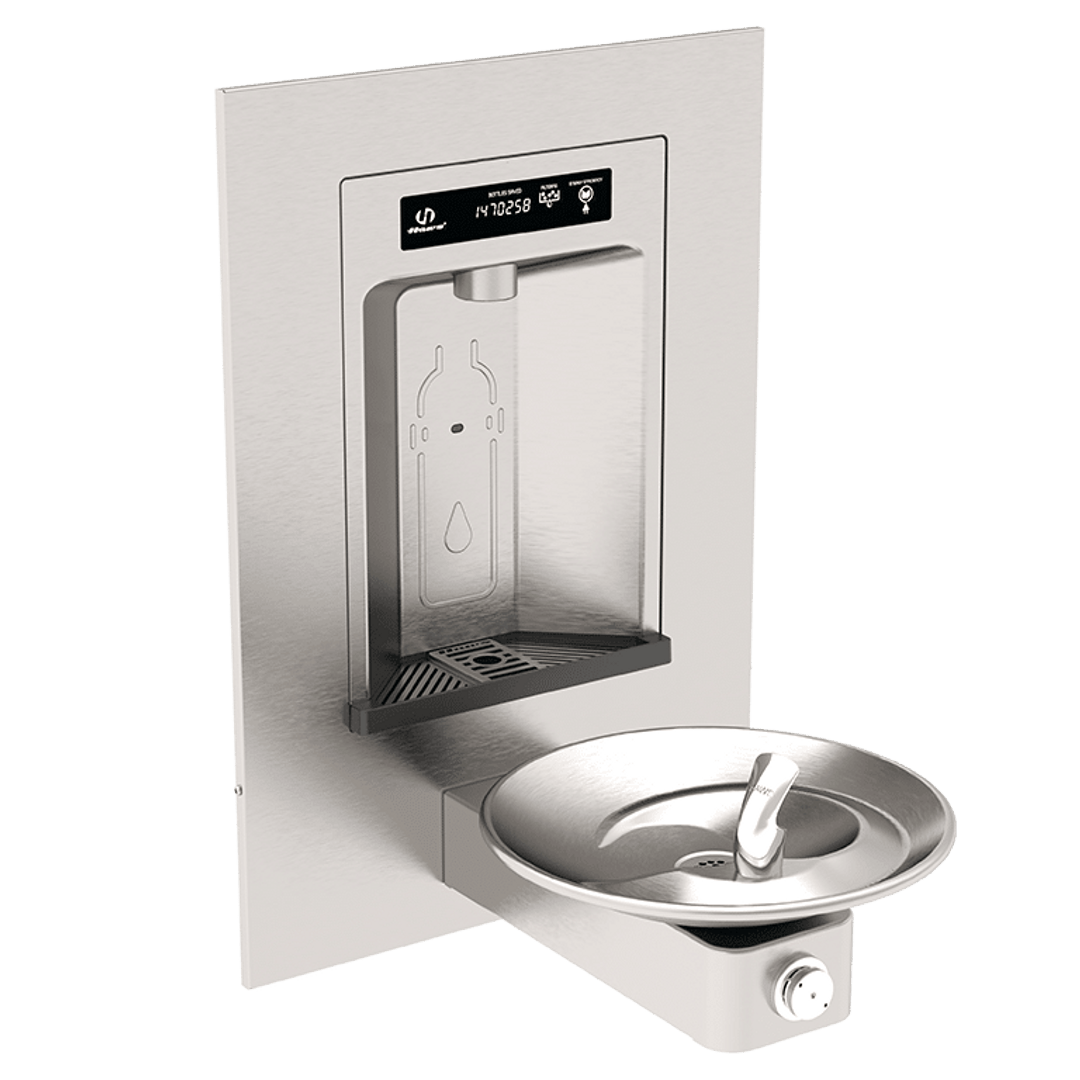

Haws 1001HS RIVIVE Hydration Station Recessed Bottle Filler with Fountain (Requires Rear Access to Unit)

The Haws RIVIVE™ Hydration Station™, model 1001HS features an ADA bottle filler and drinking fountain. It offers field configurable filtration, a sensor-operated 1.1 gpm fill rate, and auto-purge functionality.

Specifications:

Model 1001HS RIVIVE™ Hydration Station™ vandal-resistant wall-mounted ADA drinking fountain and recessed motion-activated bottle filler features an 18-gauge Type 304 Stainless Steel satin finish basin with integral swirl design, 14-gauge Type 304 Stainless Steel wall bracket, 100% lead-free waterways, vandal-resistant push-button operated stainless steel valve with front-accessible cartridge and flow adjustment, polished chrome-plated brass vandal-resistant bubbler head with integral laminar anti-squirt flow, chrome-plated brass vandal-resistant waste strainer, vandal-resistant bottom plate, stainless steel satin finish back panel, and 1-1/4" (3.2 cm) O.D. waste pipe. Bottle filler includes a 3000 gallon (11356 L) capacity, Electronic Lifecycle Control filter cartridge, with filter replacement indicator light, LED lighted 12" sensor operated bottle opening with quick 1.1 gpm fill rate and laminar flow, auto purge feature automatically cycles water once every 24 hours, display menu which shows sensor range adjustment, factory reset, software/firmware version readout and error readout, along with bottle counter showing number of bottles saved, and vandal-resistant sensor resists scratching and water droplet fowling. (Filter, P-trap and stop require rear access)

Model 1001HS barrier-free vandal-resistant drinking fountain and motion-activated bottle filling station offers the only all stainless-steel valve body that is machined out of solid bar stock, is fully serviceable through the front of the push button assembly offering access to the water control cartridge and integral water supply strainer, and has front access to the water stream height adjustment for easy maintenance without having to remove the valve. Outfitted with such protective features as a vandal-resistant bubbler head, waste strainer, and bottom plates, this fountain is quick to discourage vandals.

• The fountains stainless steel valve body is the only one on the market machined from solid bar stock
• 18-gauge Type 304 Stainless Steel bowl assembly mounted on a 14-gauge Type 304 Stainless Steel wall bracket
• Vandal resistant components include the bubbler, bowl, button, drain and bottom plate
• Engineered waste plumbing with enough access room for water stop, electrical junction box, filter and drain connections (rear access is required)
• LED lighted 12" sensor operated bottle filler opening with quick 1.1 gpm fill rate and laminar flow with front access for changing filter
• 3000 gallon (11356 L) capacity, Electronic Lifecycle Control filter cartridge, with filter replacement indicator light. When filter expires, solenoid stops dispensing water to bottle filler
• Auto purge feature automatically cycles once every 24 hours, if no use, to assure a fresh water supply as well as trap integrity
• 100% lead-free waterways
• Display menu which shows sensor range adjustment, factory reset, software/firmware version readout and error readout, along with bottle counter showing number of bottles saved
• Vandal-resistant sensor resists scratching and water droplet fowling, and is separated from display for maintenance
• Easy maintenance with front fountain access to filter, valve adjustment and cartridge replacement

Model meets all current Federal Regulations for the disabled including those in the Americans with Disabilities Act. Haws manufactures drinking fountains, faucets and electric water coolers to be lead-free by all known definitions including NSF/ANSI/CAN 61- Section 9, NSF/ANSI/CAN 372, California Proposition 65, and the Federal Safe Drinking Water Act. Product is compliant to California Health and Safety Code 116875 (AB 1953-2006), and 116876 (AB 100) "NSF/ANSI/CAN 61: Q ≤ 1".
