The ARS Series anchor are typically installed during the framing stage and then they are flashed into the roofing material as a permanent fixture for the structure. They provide a fall protection tie off point for all tradesmen and maintenance workers.

This anchor is available in 2 models:

ARS 2×4 - designed for 2×4 trusses and installs with the grade 8 bolt and teko nails. No additional blocking is necessary.
ARS 2×8 - designed for 2×4, 2×6 and 2×8 trusses and has a corresponding attachment hole to accommodate the truss.

NOTE: Both the AR 2×4 and 2×8 can be used on 2×10 and 2×12 trusses/rafters using the drill-through attachment method. These anchors are supplied with a TPE flashing base for use on all asphalt shingle and wood shake roofs. The anchor is made from stainless steel and includes mounting hardware.

Features:

14 gauge 430 Stainless Steel
Single Retail Package
Fully Engineered Fall Arrest Anchor
100% Waterproof with Dual Flashing System
Factory Supplied Attachment Hardware
Ideal for Most Types of Roofing Material
Can be used by all Tradesmen
Permanent – Stays for Life of Structure
Pallet contains 25 boxes (500 anchors)
Single pack here

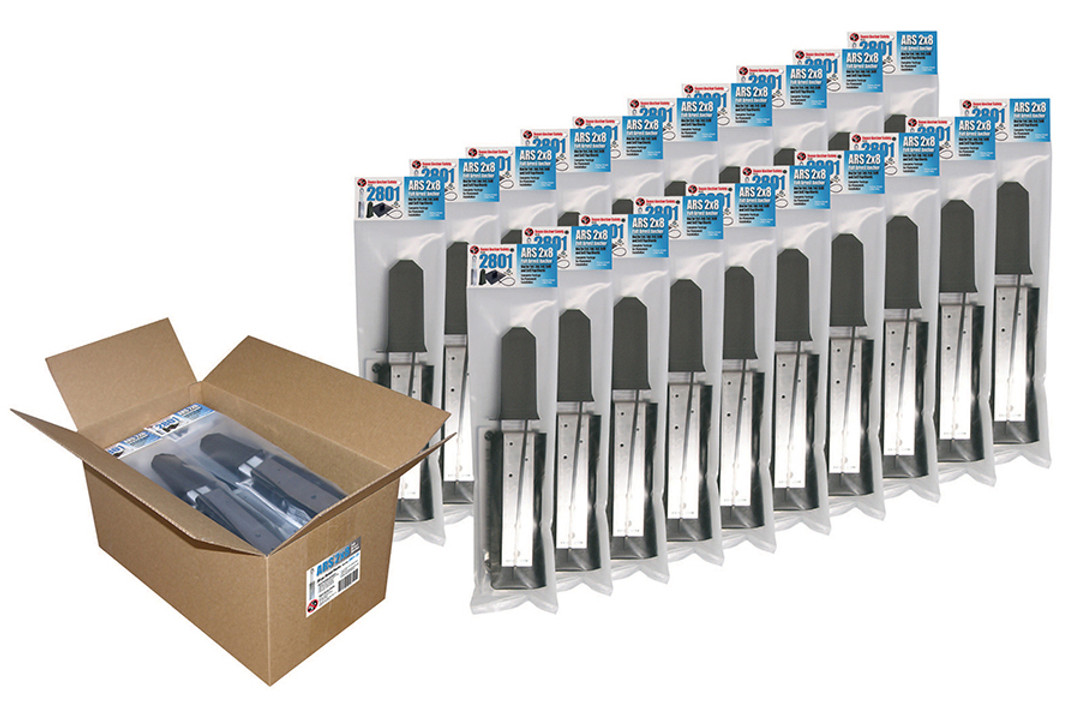

Super Anchor ARS Asphalt Shingle and Wood Shake Truss Anchor, with 2x8 and 2x4 Truss Options - 20 Pack

Product Description
