MSA Workman Tripod with Rescuer | 10163034

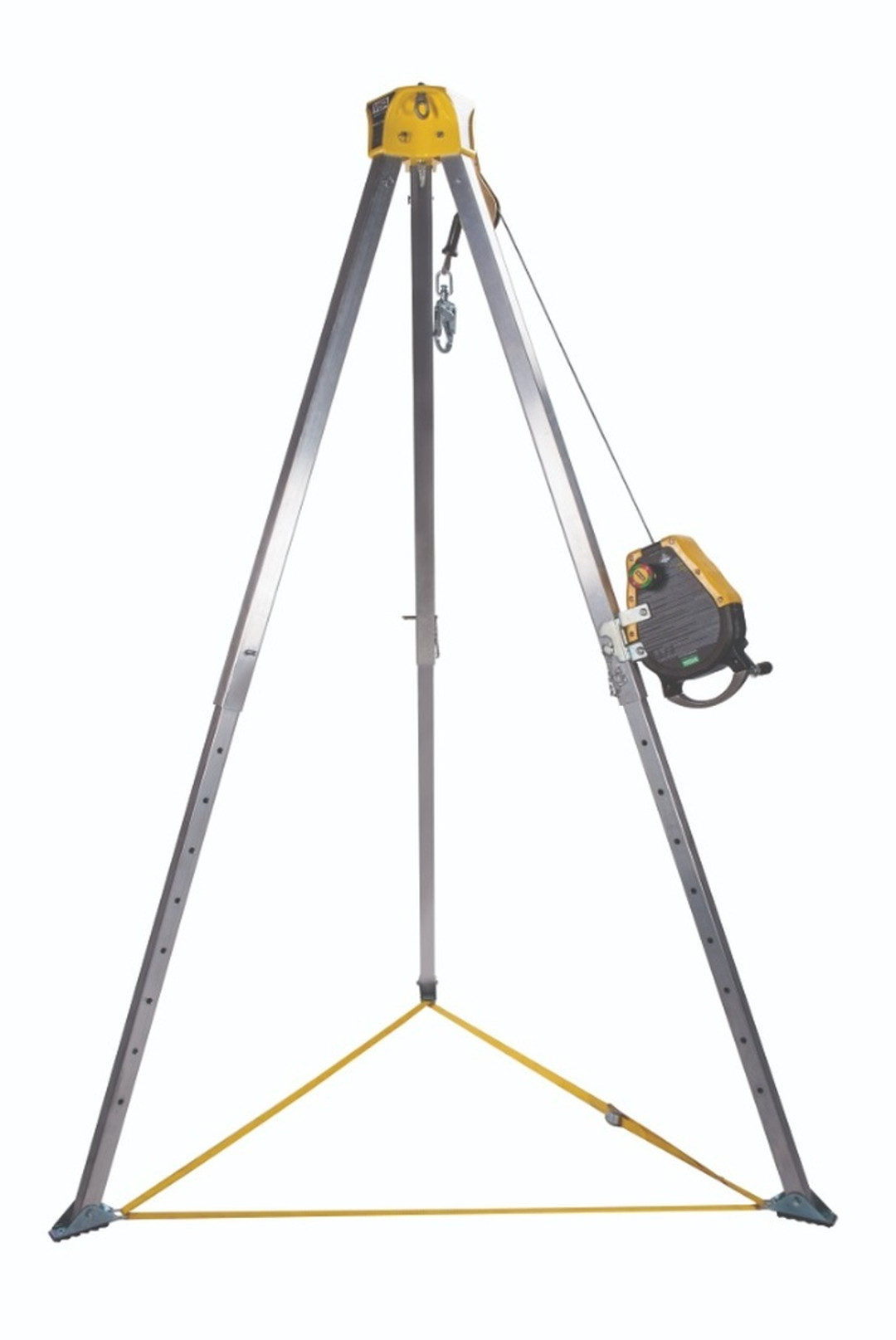

The MSA 10163034 Confined Space Tripod Kit with stainless steel 50' Rescuer is an essential tool for anyone needing to make vertical descents into confined spaces. With its advanced features, this tripod kit makes confined space entry easy, safe and efficient.

Easy to Setup and Dismantle

The Workman Tripod 10163034 features an internal leg-locking mechanism that allows for quick and easy setup and dismantling without the need for tools. It also has a maximum height indicator on the tripod legs, cut-resistant leg pin retention chains, and recessed product labels that make it easy to use and identify.

Stability and Safety You can Count on

This confined space tripod kit by MSA is designed to be stable and safe. Skid-resistant feet with built-in leg base support straps improve its stability and strengthen the entire system. An internal leg-locking mechanism prevents accidental disengagement during use, reducing the possibility of damage to the mechanism during use or while in storage.

Versatile, Efficient, and Powerful

The MSA 10163034 Confined Space Tripod Kit with SS 50' Rescuer is designed for lifting, lowering, and positioning of personnel and materials. Its automatic hinge lock legs with incremental adjustment make it easy to adjust to any terrain. The tripod kit has a maximum workload of 310 lbs. for personnel and 620 lbs. for materials, making it versatile for different applications.

This tripod kit is efficient and powerful, too, making it ideal for non-entry rescue of a confined space entrant. The anti-backlash crank handle with lifting/lowering speed of 25 ft. per minute, integral shock absorber, and load-limiting clutch prevents overloading of the hoist. The air drive adapter also enables powered lifting/lowering with an optional air-powered drive assembly.

This tripod kit includes a galvanized or stainless-steel wire rope line with a self-locking swivel snap hook. The primary gear is backed up by two independent secondary brakes, ensuring that the system is safe and secure. A stainless steel 50' rescue winch is an important part of the 10163034 by MSA. It is designed to lift and lower personnel and materials safely and efficiently. Its self-locking brake ensures that it remains in position during use, while the stainless-steel construction ensures its durability and reliability.

Benefits of MSA 10163034

• Easy and Safe Confined Space Entry: Minimize damage to mechanism during use or storage due to advanced features like stable design, stainless steel construction, and skid-resistant feet.
• Versatility: Easy to use on any terrain, able to handle different loads, and designed for use with both personnel and materials.
• Efficiency and Power: Prevent hoist overloading and ensure system safety with anti-backlash crank handle, integral shock absorber, and load-limiting clutch; and enable powered lifting/lowering with an optional air-powered drive assembly.
• Durability and Reliability: Experience safe and efficient lifting and lowering with stainless steel winch and galvanized or stainless-steel wire rope line with self-locking swivel snap hook.

The MSA 10163034 Confined Space Tripod Kit with SS 50' Rescuer offers easy and safe confined space entry, versatility, efficiency, power, durability, and reliability, making it an essential tool for anyone needing to make vertical descents into confined spaces.

Recommended Industries

Construction, Oil & Gas, Utilities, General Industry, Mining

Applications

Confined Space, Working at Heights, Fall Protection

Additional Details

Standards: ANSI Z359.14, OSHA

Maximum Height of Tripod: 96” (to top of tripod head); 91” (under tripod head)

Stainless-steel Kit Components: 8 ft. Tripod; 50 ft. Rescuer

Pulleys: 1

Carabiners: 1

Material: Aluminum alloy (head); High-tensile aluminum alloy (leg)

Maximum Personnel Capacity: 400 lbs.

Maximum Material Capacity: 620 lbs.

Minimum Vertical Static Strength: 5,000 lbs.

Literature

• Confined Space Solutions Bulletin
• Data Sheet: Workman Confined Space Entry Kit

Instruction Manuals

• Sure-Strong Confined Space System
• Workman Self Retracting Lanyard with Emergency Rescuer
• Workman Winch
• Self Retracting Lanyard with Emergency Responder Instruction Manual
• Workman Tripod
• Lynx Hoist Personnel/Materials Hoist

FAQs

What is the maximum weight capacity of the MSA 10163034 tripod kit?

The maximum workload is 310 lbs. for personnel and 620 lbs. for materials.

What is the lifting/lowering speed of the anti-backlash crank handle?

The 10163034 anti-backlash crank handle has a lifting/lowering speed of 25 ft. per minute.

Can the MSA 10163034 be used for non-entry rescue of a confined space entrant?

The MSA 10163034 is an essential piece of equipment for non-entry rescue operations in confined spaces. Its design and construction make it ideal for extracting individuals from hazardous situations, while its compliance with safety regulations ensures that rescuers can perform their duties with confidence and reliability.

Is the MSA 10163034 tripod kit easy to set up and dismantle?

One of the key features of the MSA 10163034 is that it can be set up and dismantled easily without the need for tools. This is an important feature because it allows rescue teams to quickly deploy the equipment when it is needed, without having to waste time searching for and assembling complicated tools.

What is the length of the stainless steel 50' rescue winch included in the kit?

The MSA 10163034 comes with a stainless steel 50' rescue winch.

What is the purpose of the internal leg-locking mechanism?

The internal leg-locking mechanism of the MSA 10163034 is an important safety feature that helps to ensure the stability and security of the tripod during use, while also protecting the equipment from damage during use and storage.
