DuraTech® Mini SRLs are a recognized replacement for traditional energy absorbing lanyards and provide added user benefits that lanyards cannot deliver. The most important of these benefits is the user's reduced minimum fall clearance which in turn supports the use in more applications. Available in single and twin leg configurations for overhead and dorsal D-ring attachment, DuraTech® mini personal SRLs are versatile, lightweight and sensibly affordable solutions for most all personal fall arrest systems.

Class 1 Personal SRL-P
Features internal locking pawls and ViewPack external energy absorbers for even deceleration
Long-wearing Dyneema web lifeline resists abrasion while providing trusted strength
Nylon housings provide impact resistance in most worksite conditions
Plated steel swivel-eye helps to prevent lifeline twisting and provide smooth operation
Features alloy steel snap hook anchorage connector
Includes alloy steel dorsal connecting carabiner
May be anchored up to 5 ft below the dorsal D-ring for user's weighing up to 310 lb max
Complies with ANSI Z359.14-2021 Class 1 SRL-P. Learn more and download White Paper

Material Specifications:

Webbing: Dyneema/Polyester blend; 4,500 lb min.
Energy Absorber: Polyester tear-away
Anchorage Connector: Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
Dorsal Connector: Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength

Performance Specifications:

Static Strength: 3,600 lb min.
ANSI SRL Class/Type: Class 1 SRL-P
Avg. Arrest Force: 900 lb
Max. Arrest Force: 1,800 lb
Max. Arrest Distance: 42"
ANSI User Capacity: 130 to 310 lb max.
ANSI Compliance: Z359.14-2021
OSHA User Capacity: 130 to 310 lb max.
OSHA Compliance: 1926.502 and 1910.66

Resources:

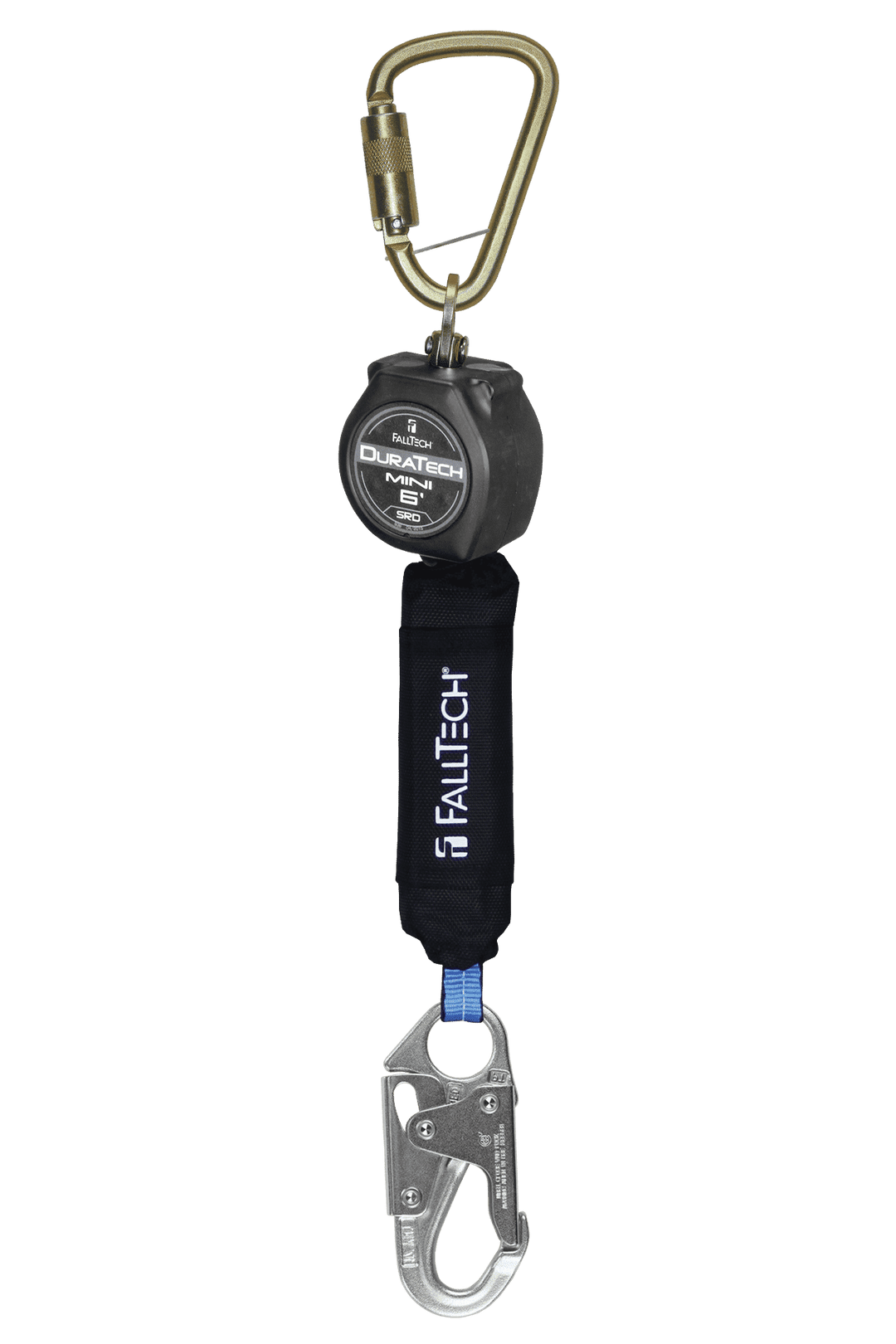

Falltech DuraTech 72706SB1 Mini Class 1 Personal Self-Retracting Lifeline
