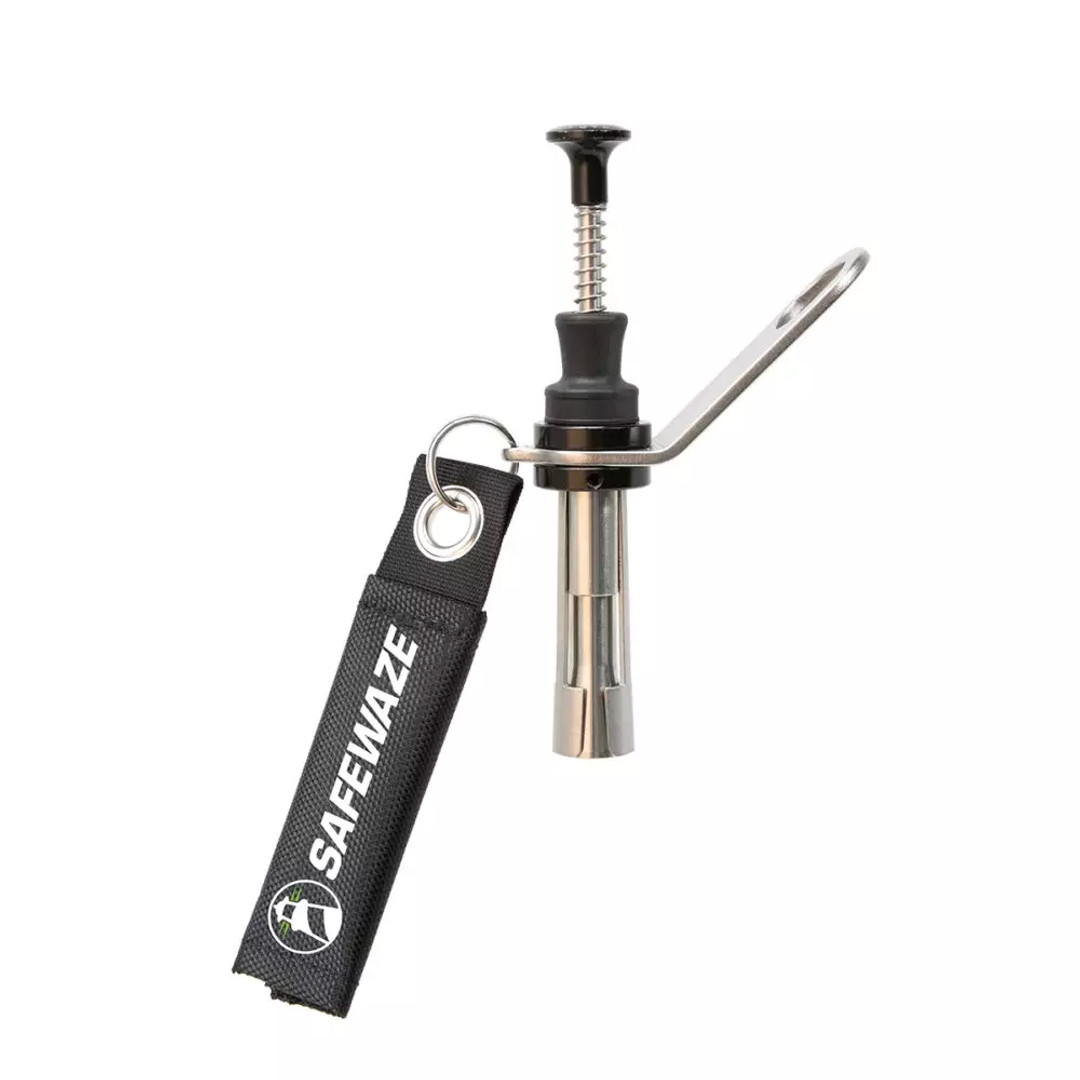

The Removable Concrete Anchor is a compact, reusable anchor with reliable durability for repeated use in concrete applications. Easy installation in seconds with quick trigger removal by hand or optional assist with a simple hammer tap. The trusted design ensures the anchor offers secure protection while you work and releases quickly when you need to move on.
| Materials: | Stainless steel body and D-ring, plated steel cap, nylon trigger, polyester label cover |
| Weight: | 0.9 lbs. (0.4 kg) |
| Length: | Overall length 6.5" (165 mm), exposed length 3.7" (94 mm) |
| Anchor Clearance: | 6" (25 mm) diameter |
| Hole Depth: | 3" (76 mm) |
| Hole Diameter: | 0.75" (19 mm) |
| Minimum Breaking Strength (when installed in reinforced concrete): | 5,000 lbs. (in 3,000 PSI concrete) |
| 10,000 lbs. (in 4,000 PSI or higher concrete) | |
| Working Load Limit: | 1,800 lbs. (in 4,000 PSI or higher concrete) |
| ANSI Weight Capacity: | 130-310 lbs. (59-141 kg) |
| OSHA Weight Capacity: | Up to 420 lbs. (191 kg) |
| ANSI Standards: | Z359.18-2017 Type T |
| OSHA Standards: | 1926.502, 1910.140, 1910.66 |
